Husqvarna Automower® 520 EPOS® is a robotic mower designed for commercial fleet use and a sibling model to the well-established Automower® 550 EPOS®. It features Husqvarna EPOS® with virtual boundaries instead of physical wires, allowing you to define several work areas with different settings and set temporary stay-out zones. Thanks to the systematic mowing pattern, Automower® 520 EPOS® can handle green areas of up to 5000 m². The mower also navigates easily in narrow passages and manages slopes up to 45% (24°) with perfect cutting results – even in rainy conditions. EPOS® RS5 Reference Station required.
- Working area capacity: 5000 m²
- Maximum incline inside working area: 45 % (24°)
Capacity | NZ Art no: 970 71 78‑06 |
|---|---|
Area capacity | 5,000 m² |
Boundary type | Virtual wire |
Maximum slope performance at boundary | 15 % |
Maximum slope performance inside installation | 45 % |
Max active time | 24 h |
Follow guide | Virtual transport path |
Charging system | Automatic |
Overall dimensions | |
Weight (complete product w/o side packed articles) | 13.8 kg |
Product size length | 72 cm |
Product size width | 56 cm |
Product size height | 32 cm |
Product data | |
Colour | Orange |
Sound level perceived | 62 |
Protection Index (IP Code) | IPX4 |
Battery type | Li-Ion |
Battery capacity | 5 Ah |
Charging current | 2.2 A |
Typical mow time on one charge | 75 min |
Typical charging time | 65 min |
Mean energy consumption per month at maximum use | 14 kWh |
Area capacity – Standard 48 | 5,000 m² |
Area capacity – Sports 24 | 2,500 m² |
Area capacity – Max 72 | 7,500 m² |
Area capacity per hour without charging | 175 m² |
Cutting System | |
Cutting system | 5 pivoting razor blades |
Cutting height max | 60 mm |
Cutting height min | 20 mm |
Cutting width | 24 cm |
Cutting height adjustment | Electric |
Skid plate | Yes |
Dual cutting direction | Yes |
Control | |
User Interface | Professional User Interface/App |
Display | None |
Connectivity | Bluetooth®, Cellular |
App controlled | Husqvarna Fleet Services |
Smart Home integration | Yes |
Firmware Update | FOTA |
Safety | |
GPS Theft tracking | Yes |
GeoFence | Yes |
PIN code | Yes |
Alarm | High |
Lift sensor | Yes |
Tilt sensor | Yes |
Object detection | No |
We are your Husqvarna Automower Installation Specialists!
Click here to learn about the Automower purchase and installation process or explore the features of the AM520 EPOS below
Get in Touch now to learn more about this product
Features
Want to take a closer look? Learn more about the product in depth by exploring its design and features.
Virtual, wire-free operation through satellite based RTK-GNSS technology, enables an accuracy down to approximately 2cm. The absence of physical wires implies a new level of robustness and flexibility, permitting regular deep aeration and turf repair without jeopardizing the function of the robot installation.
Improve the visual impression of the turf by changing the mowing pattern. With EPOS® technology, the mower can run in parallel lines and create a variety of patterns, such as diamonds, triangles and checkerboard.

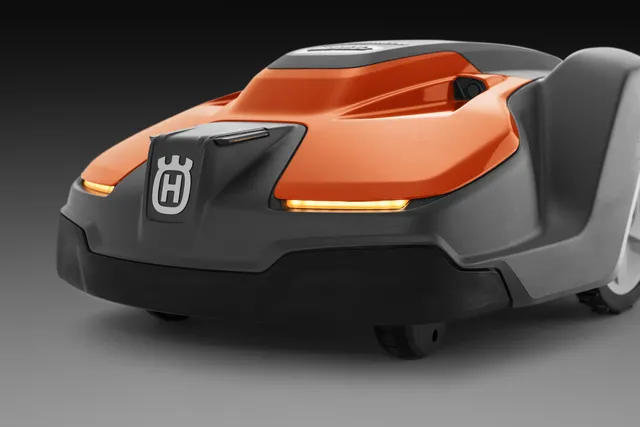

Warning lights with pulsating or solid light to create awareness during operation at night. Reduces the risk of accidents in public work environments.
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.
Designate and mark a machine maintenance parking spot on the map. On command, the product parks there automatically while waiting for service, cleaning, loading or storage.
Seize the opportunity to operate the product using a remote control via the appDrive feature on your smartphone. The handling is easy and user-friendly, sparing you from strenuous, unnecessary lifting when the product needs to be moved between workspaces, to the service facility, or during installation.
Built-in sensors using ultrasonic technology helps the mower to detect objects, lowers the speed and avoid hard collisions.
Husqvarna Fleet Services™ gives you the possibility to monitor and control multiple numbers of mowers from your smartphone, tablet or laptop. You can overview your mower’s status or exact location, command them to start, stop or park them all before the storm arrives. Easy to adjust settings and cutting heights. Receive alarms and track the mower’s position in case of theft.
For silent and trouble-free operation it automatically detects imbalance in the cutting system. Imbalance could be caused by missing, double mounted or damaged blades.
Husqvarna Automower® automatically senses narrow passages and finds its way even through the smallest passages. It will vary its route through the passage to avoid unpleasant tracks.
When Automower® needs more power, it finds its own way back to the charging station.
Automower® Connect gives you full control of the mower right in your smartphone. You can easily send start, stop and park commands, check and adjust settings. If required also receive alarms and track your mower’s position in case of theft – wherever you are.
10 years mobile data contract included. Standard on X-line, optional for all 300-400 series.
10 years mobile data contract included. Standard on X-line, optional for all 300-400 series.
Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app. The setting is also accessible from the mower’s main menu.
Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximise its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on the lawn and mower.
Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximise its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on the lawn and mower.

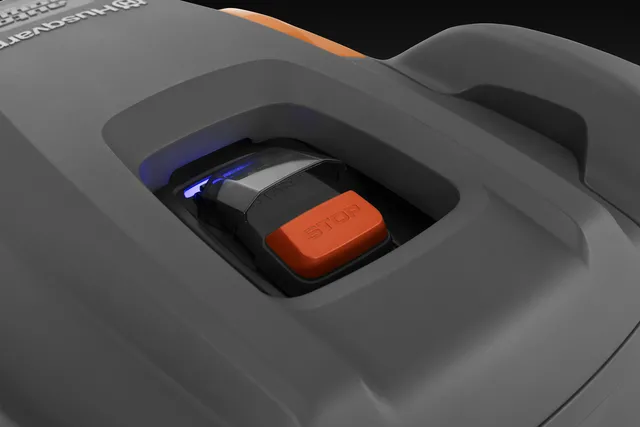

Model equipped with status LED indication and robust and easy to manage switch for START / STOP functionality. Simplifies use for inexperienced users and minimizes serious impact on the mower in case of vandalism. Full surveillance from smart phone, tablet or laptop.
Rubber-made front bumper makes the mower more restistant to recurrent collisions with trees, shrubs and other objects within the installation.
An onboard GPS system creates a map of the garden, including where the boundary and guide wires are installed. Husqvarna Automower® will then register which parts of the garden it has covered and adjusts its mowing pattern accordingly. This will ensure optimized lawn coverage and an excellent cutting result.
Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy lawn. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides for efficient operation and extremely low energy consumption.
Thanks to the free movement pattern of Husqvarna Automower® the lawn is perfectly cut, achieving a beautiful and carpet-like look. The razor-sharp blades cut the grass gently from all directions, helping it to grow strong. Moss growth is effectively prevented.
Efficient energy management means low energy consumption, allowing Automower® to operate at a fraction of the cost of conventional lawnmowers.
Automower® is electrically powered and produces no harmful emissions.
If Automower® is lifted off the ground or tips over, the cutting automatically shuts off. In addition, the blades are rotating far from the outer edge of the machine. If Automower® meets an obstacle it will stop and redirect itself without causing any damage.
Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 45%.
Just a push on the PARK button to call back the mower to the charging station, in areas like public football pitches, golf courses etc.
Built-in sensors using ultrasonic technology helps the mower to detect objects, lowers the speed and avoid hard collisions.
Robotic lawn mowing is all about reliability. Husqvarna has during 20 years of development refined its mower concept to achieve the highest level of reliability, quality and cutting result, with a minimum of assistance.
Automatic cutting functionality to even out grass height differences. Cutting disc sensors detect whether the mower enters area with higher grass and switches cutting technology to systematic spiral pattern.
A uniform cutting result throughout the lawn thanks to the possibility to start the mowing at five different remote locations along the patented guide wire, out from the charging station. The larger grass area, the better and more important with several starting points.With active GPS assisted navigation (specific models), the remote starting points are autoset and manual settings are not needed.
Thanks to its unique cutting system, Automower® works extremely discreet and quiet and just when you want.
Powerful wheels with a coarser and more aggressive tire pattern. Gives better traction and improved performance in slopes and more rough terrain.
Triple guidewires reduces searching time even if the installation area is really large, complex or divided into several areas.
Interchangeable top cover. Available in Husqvarna orange and granite grey.
Different level theft protection for high security. If the mower carried away a high-sounding alarm starts and can only be deactivated with the mower’s unique PIN code.
Wheel motors with 2 step gearboxes, a new technology that enables ultra-silent drive. Gives an outstanding performance in perceived noise level and enables night time operation or 24/7 mowing in all kind of neighborhoods.
Products equipped with Automower Connect®/Husqvarna Fleet Services™ immediately begin tracking its GPS position and send notifications to your devices. Makes the Automower® installation extra safe and minimizes the risk of theft.
Automower® can be outside around the clock and is designed to function properly and unattended regardless of the weather conditions. Automower® is built to withstand the harsh Nordic climate without any problems.
Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximize its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on lawn and mower.
Durable interchangeable poly fiber wheel brushes. Keeps the driving wheels clean from clippings and leaves to maintain improved traction.
