AM435X AWD AUTOMOWER®

Husqvarna Automower® 435X AWD is a robotic lawn mower featuring excellent slope performance and the ability to tackle rough terrain and lawns up to 3500 m². The all-wheel drive handles slopes up to 70%, and the articulated body enables excellent maneuverability and traction in demanding terrain and narrow passages. With the onboard GPS, the mower can create a virtual map of the lawn. This enables Automower® Zone Control, which you easily manage via your mobile phone and the Automower® Connect app to create work areas with different settings and temporary stay-out zones.

Working area capacity: 3500 m²
Maximum incline within the working area: 35 °
Typical mow time on one charge: 100 min
Typical charging time: 30 min

Capacity	AU, NZ Art no: 967 85 33‑06
Area capacity	3,500 m²
Boundary type	Physical wire
Maximum slope performance at boundary	50 %
Maximum slope performance inside installation	70 %
Max active time	24 h
Follow guide	3
Charging system	Automatic
Overall dimensions
Weight (complete product w/o side packed articles)	17.6 kg
Product size length	93 cm
Product size width	55 cm
Product size height	29 cm
Product data
Colour	Grey
Sound level perceived	60 dB(A)
Protection Index (IP Code)	IPX4
Battery type	Li-Ion
Battery capacity	8 Ah
Charging current	7 A
Typical mow time on one charge	145 min
Typical charging time	45 min
Mean energy consumption per month at maximum use	24 kWh
Cutting System
Cutting system	3 pivoting razor blades
Cutting height max	70 mm
Cutting height min	30 mm
Cutting width	22 cm
Cutting height adjustment	Electric
Skid plate	Yes
Dual cutting direction	Yes
Control
User Interface	Jogwheel, display and status LED:s/App
Display	Color Display TFT 2,8” QVGA
Connectivity	Bluetooth®, Cellular
App controlled	Automower® Connect
Smart Home integration	Yes
Firmware Update	FOTA
Safety
GPS Theft tracking	Yes
GeoFence	Yes
PIN code	Yes
Alarm	Yes
Lift sensor	Yes
Tilt sensor	Yes
Object detection	Ultrasonic sensor

We are your Husqvarna Automower Installation Specialists!

Click here to learn about the Automower purchase and installation process or explore the features of the AM435X AWD below

Get in Touch now to learn more about this product

Get in Touch

Features

Want to take a closer look? Learn more about the product in depth by exploring its design and features.

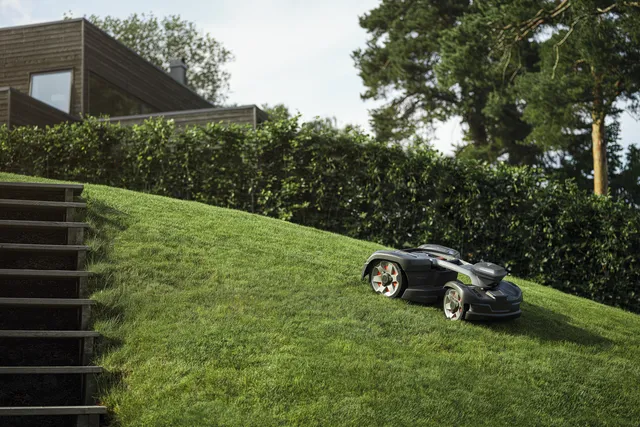

Automower® AWD models feature technology that optimise each wheel’s control for superior operation in the most demanding terrain, with an impressive slope performance that handles 70 % (35°) incline.

Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 70%.

Automower® AWD models are built with an articulated rear body design that enables truly excellent maneuverability for navigation on complex lawns and through passages. The rear body also has a pivoting capability, considerably enhancing the traction in rough terrain, making the most out of the AWD operation.

Husqvarna Automower® automatically senses narrow passages and finds its way even through the smallest passages. It will vary its route through the passage to avoid unpleasant tracks.

An onboard GPS system creates a map of the garden, including where the boundary and guide wires are installed. Husqvarna Automower® will then register which parts of the garden it has covered and adjusts its mowing pattern accordingly. This will ensure optimized lawn coverage and an excellent cutting result.

The new Automower Access user interaction with high-resolution color display, jog wheel and status indicators, provides an intuitive yet sophisticated way of controlling your mower. The icon-based design language integrates intuitively with the Automower® Connect smartphone app, providing a seamless user experience.

All Automower® Connect equipped robotic mowers are compatible with Amazon Alexa and Google Home. This means all you need to do is give your smart speaker a voice command, and Husqvarna Automower® will jump to the task. You can execute the most common commands such as start, stop, park and get status updates from your mower by simply asking your voice assistant.

When Automower® needs more power, it finds its own way back to the charging station.

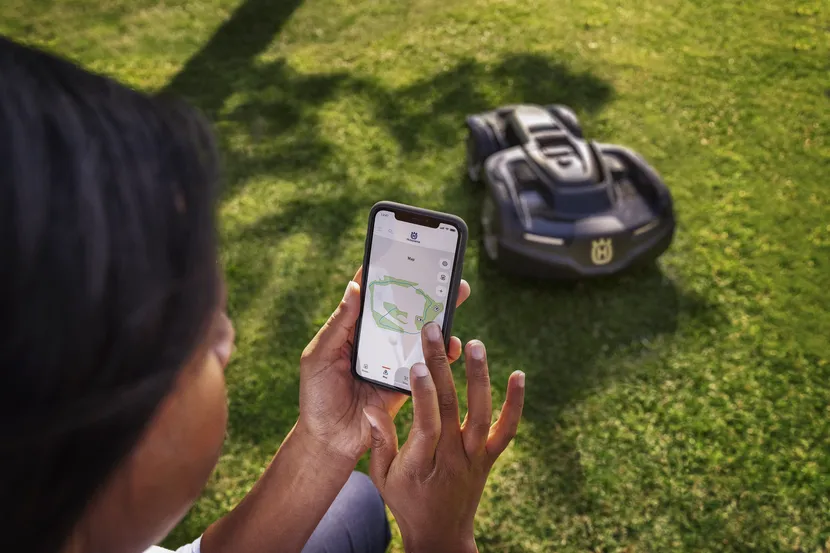

Automower® Connect gives you full control of the mower right in your smartphone. You can easily send start, stop and park commands, check and adjust settings. If required also receive alarms and track your mower’s position in case of theft – wherever you are. Standard on X-line, optional for all 300-400 series.

Different level theft protection for high security. If the mower carried away a high-sounding alarm starts and can only be deactivated with the mower’s unique PIN code.

Efficient energy management means low energy consumption, allowing Automower® to operate at a fraction of the cost of conventional lawnmowers.

Products equipped with Automower Connect®/Husqvarna Fleet Services™ immediately begin tracking its GPS position and send notifications to your devices. Makes the Automower® installation extra safe and minimizes the risk of theft.

Thanks to the free movement pattern of Husqvarna Automower® the lawn is perfectly cut, achieving a beautiful and carpet-like look. The razor-sharp blades cut the grass gently from all directions, helping it to grow strong. Moss growth is effectively prevented.

Rubber-made front bumper makes the mower more restistant to recurrent collisions with trees, shrubs and other objects within the installation.

Energy-efficient LED headlights for better visibility and control even in the dark. The lights will also start flashing if a malfunction occurs.

The cutting height is swiftly adjusted by the electrically operated height adjustment, easily accessible from the main menu.

For silent and trouble-free operation it automatically detects imbalance in the cutting system. Imbalance could be caused by missing, double mounted or damaged blades.

Because it is electrically powered, Automower® produces no harmful emissions.

Robotic lawn mowing is all about reliability. Husqvarna has during 20 years of development refined its mower concept to achieve the highest level of reliability, quality and cutting result, with a minimum of assistance.

A uniform cutting result throughout the lawn thanks to the possibility to start the mowing at five different remote locations along the patented guide wire, out from the charging station. The larger grass area, the better and more important with several starting points.
With active GPS assisted navigation (specific models), the remote starting points are autoset and manual settings are not needed.

Built-in sensors using ultrasonic technology helps the mower to detect objects, lowers the speed and avoid hard collisions.

With the easily programmable weekly timer function, it is possible to precisely schedule time intervals for Automower® to work.

Automower® can be outside around the clock and is designed to function properly and unattended regardless of the weather conditions. Automower® is built to withstand the harsh Nordic climate without any problems.

Make your mower unique and personal by changing the colour of the top cover. Available in polar white, Husqvarna orange or in the standard colour granite grey.

Wheel motors with 2 step gearboxes, a new technology that enables ultra-silent drive. Gives an outstanding performance in perceived noise level and enables night time operation or 24/7 mowing in all kind of neighborhoods.

Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximize its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on lawn and mower.

Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy lawn. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides for efficient operation and extremely low energy consumption.
