High performance mowing with 122 cm Clear Cut™ cutting deck
Cutting deck | AU, NZ Art no: 970 74 07‑01 |
|---|---|
Cutting width | 122 cm |
Cutting height max | 105 mm |
Cutting height min | 25 mm |
Drive system | |
Drive method | Dual pedal-operation |
Speed forward max | 10 km/h |
Speed reverse max | 6 km/h |
Engine | |
Cylinder displacement | 764 cm³ |
Engine brand | Husqvarna |
Motor/engine manufacturer | Husqvarna |
Engine name | HV 764AE |
Cylinders | 2 |
Power/fuel type | Petrol |
Oil filter | Yes |
Equipment | |
Seat material | PU |
Front-End Protection | Brush Guard Style Bumper |
Hour meter type | Digital |
Seat back height | Medium |
Steering wheel type | Ergonomic – soft grip |
Collector | Available as accessory |
Transmission | |
Transmission type | Hydrostatic |
Transmission manufacturer | Tuff Torq |
Emission | |
Exhaust emissions (CO₂ EU V) | 806 g/kWh |
Get in Touch now to learn more about this product
Features
Want to take a closer look? Learn more about the product in depth by exploring its design and features.

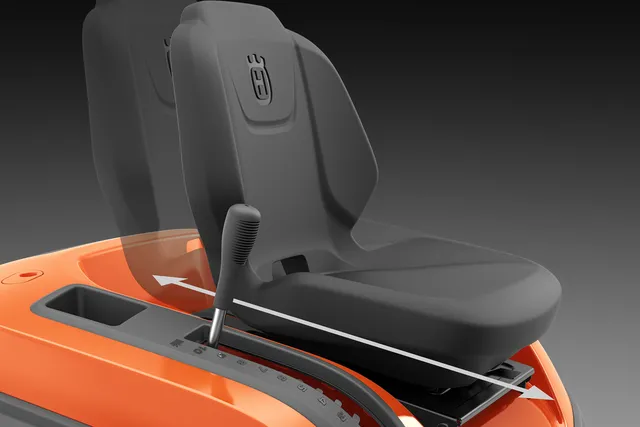

Adjustable driver seat
Tool-free adjustment of seat position to quickly set a comfortable driving position.

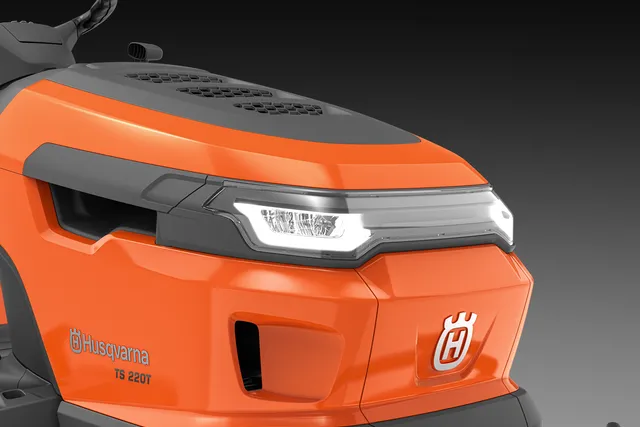

LED Headlights
Equipped with LED headlights for higher visibility from the driver’s position when operating in dark conditions.

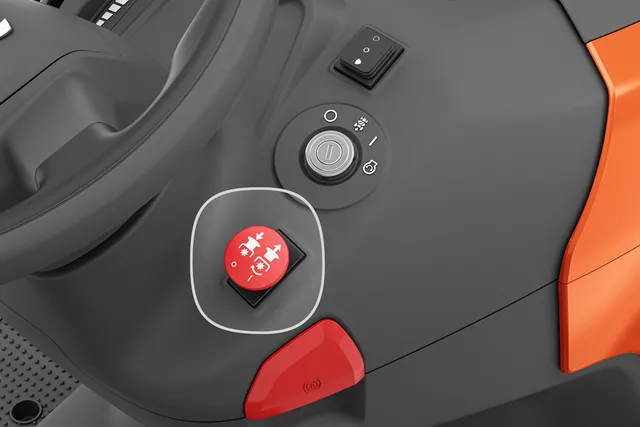

Electric engagement of cutting blades
Easy engagement of cutting blades; simply pull the switch on the control panel.

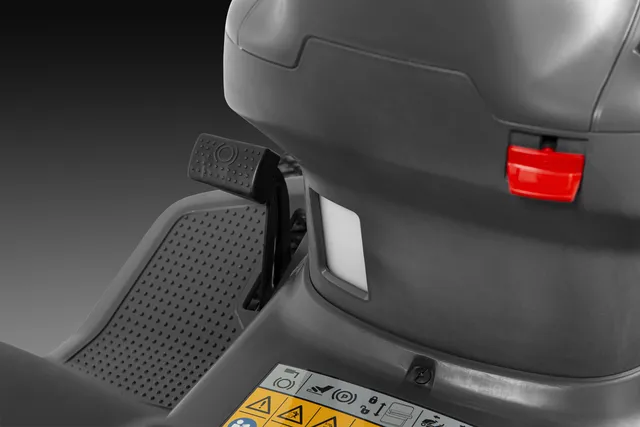

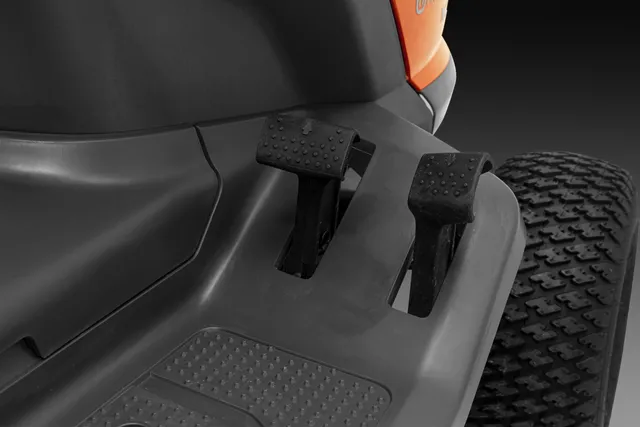

Pedal-operated hydrostatic transmission
Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.
ClearCut™ Fabricated Deck
Specially-designed 122cm deck built for superior cutting performance whether discharging, collecting or mulching.

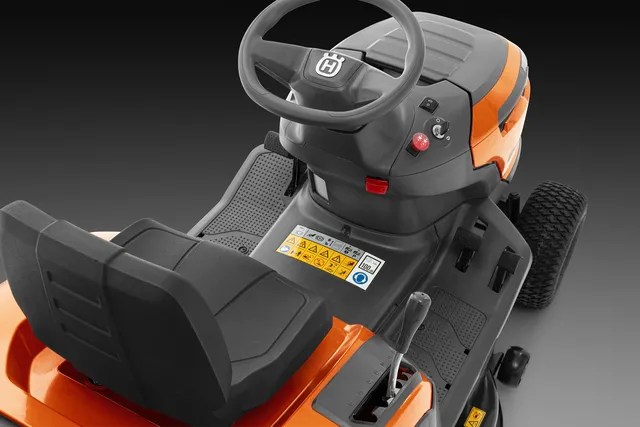

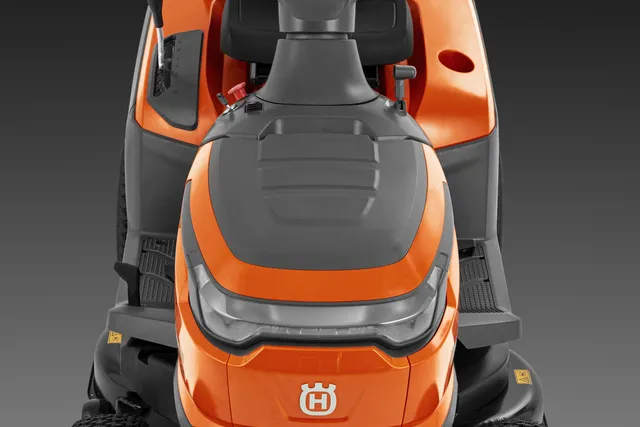

Ergonomic controls
Comfortable driving position and operation thanks to the adjustable seat and easy-access controls. Spring-assisted cutting height adjustment for easy setting of the desired height.

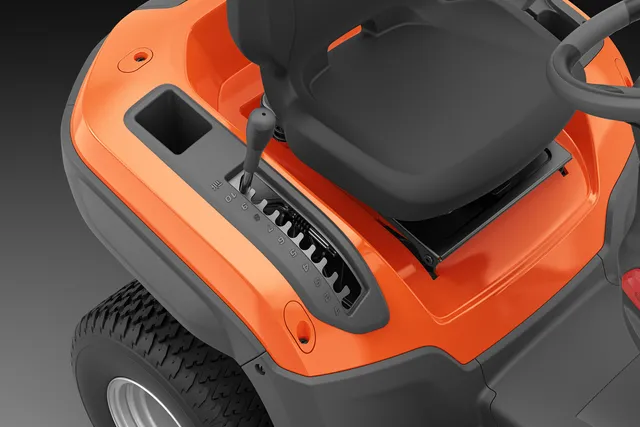

Spring-assisted cutting height adjustment
Easily accessible cutting height adjustment for improved ergonomics.The spring-assisted cutting height adjustment makes setting the desired height even easier.

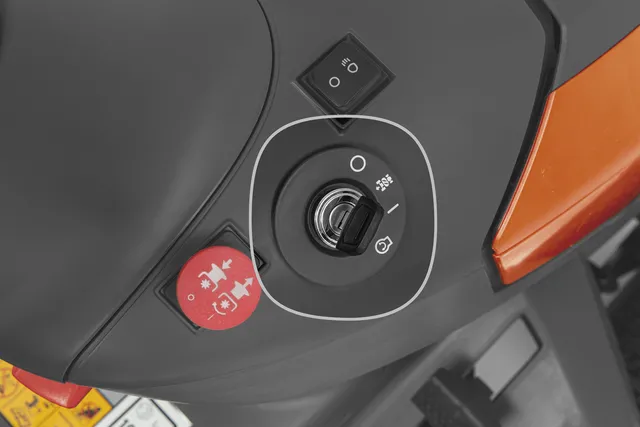

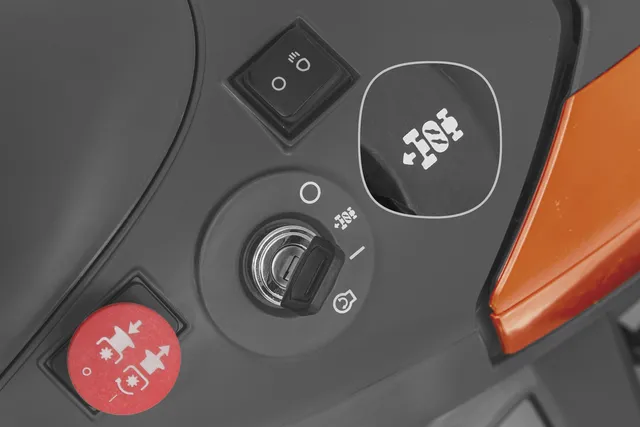

ROS in start key
ROS is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally.
Fuel level window
Fuel level window makes it easy to check the fuel level.

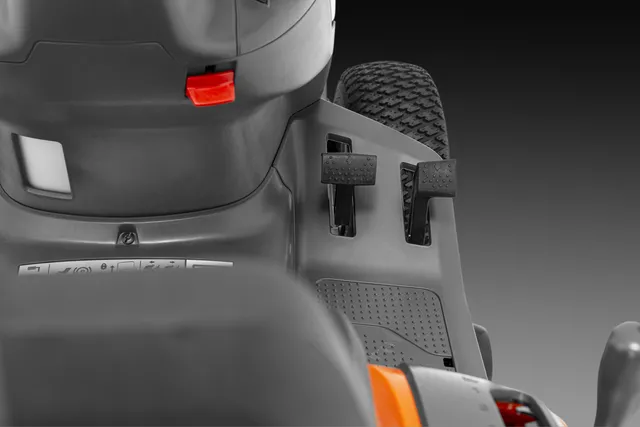

Dual pedal drive
Dual pedal drive for better drive control and easy, intuitive operation
Control levers on one side
Control levers on only one side make it easy to get in and out of the seat on the other side.

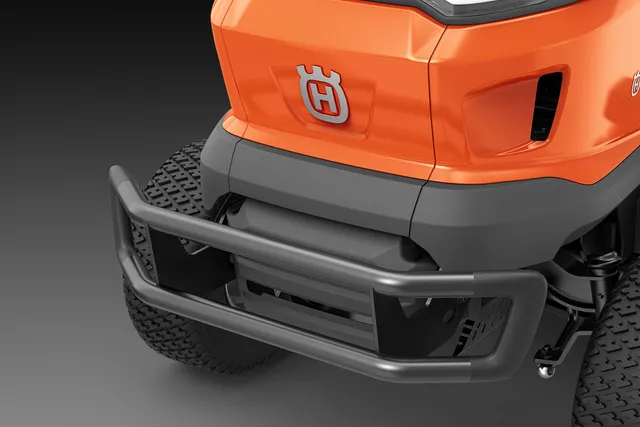

Bumper
Protects the front of the tractor effectively.
Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

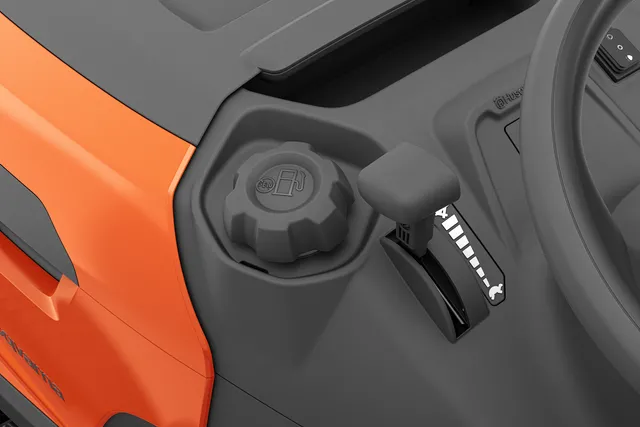

Easy refueling
Thanks to the external fuel cap, you don’t have to open the engine hood when refueling.

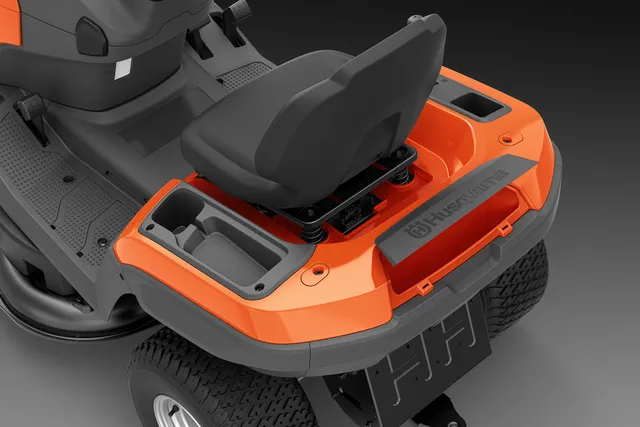

Convenient storage compartments
One open storage compartment on the left and one at the back with a lid for easy access to equipment during mowing.

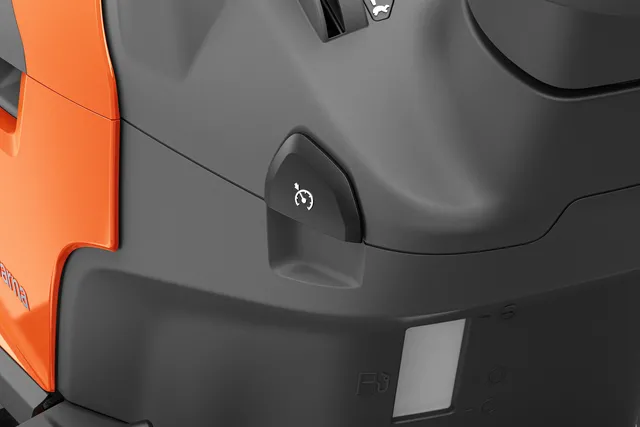

Comfortable operation with cruise control so that the foot can rest when mowing large open areas.
Comfortable operation with cruise control so that the foot can rest when mowing large open areas.

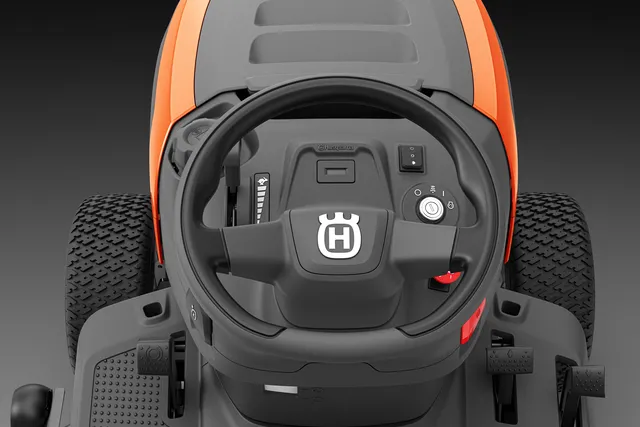

Soft grip steering wheel
Soft grip steering wheel for a pleasant user experience.

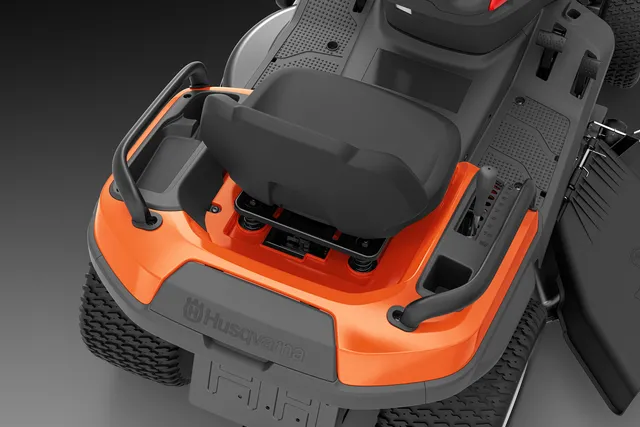

Side handle
The side handle can be used when getting on and off, or to push the product into the garage or other spaces.
