Comfortable garden tractor with high collection capacity
| Cutting deck | TC114Art no: 970 62 23‑01 |
|---|---|
| Cutting width | 95 cm |
| Cutting height max | 100 mm |
| Cutting height min | 25 mm |
| Nose roller | No |
| Anti-scalp wheels | 2 |
| Drive system | |
| Drive method | Dual pedal-operation |
| Speed forward max | 9 km/h |
| Speed reverse max | 5 km/h |
| Engine | |
| Cylinder displacement | 452 cm³ |
| Engine brand | Husqvarna |
| Motor/engine manufacturer | Husqvarna |
| Engine name | HS 452AE |
Engine Power (As rated by the engine manufacturer) | 14.8 hp |
Engine Power (As rated by the engine manufacturer) | 11 kW |
| Cylinders | 1 |
| Generator | 12 A |
| Power/fuel type | Petrol |
| Oil filter | Yes |
| Equipment | |
| Seat material | PU |
| Front-End Protection | Available as accessory |
| Hour meter type | Digital |
| Seat back height | Medium |
| Steering wheel type | Ergonomic |
| Collector | Included |
| Transmission | |
| Transmission type | Hydrostatic |
| Transmission manufacturer | Hydro-Gear |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 97.6 dB(A) |
| Sound pressure level at operators ear | 83.4 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V) | 754 g/kWh |
Get in Touch now to learn more about this product
Features
Want to take a closer look? Learn more about the product in depth by exploring its design and features.

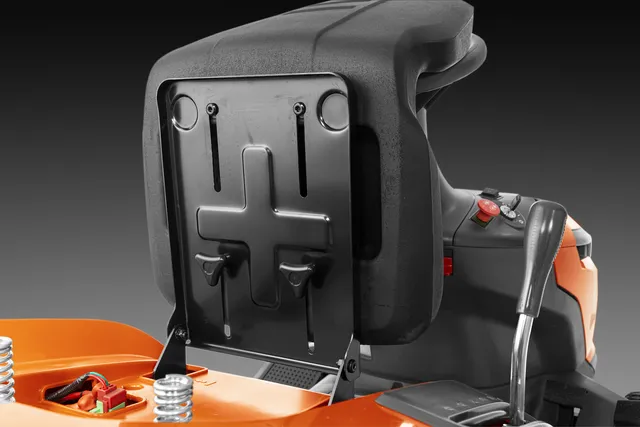

Adjustable driver seat
Tool-free adjustment of seat position to quickly set a comfortable driving position.

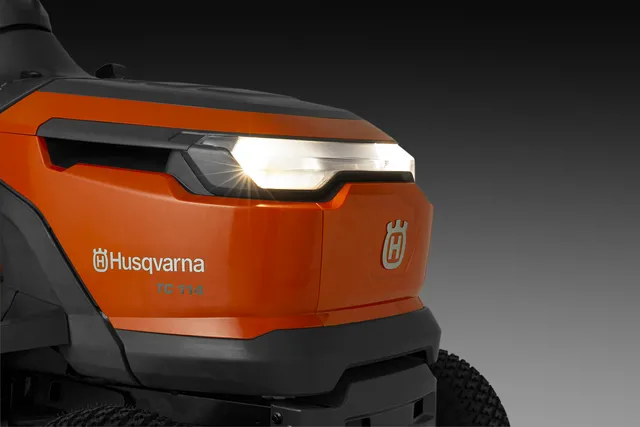

Dual headlights
Dual headlights at the front for clear visibility when driving in dark conditions.

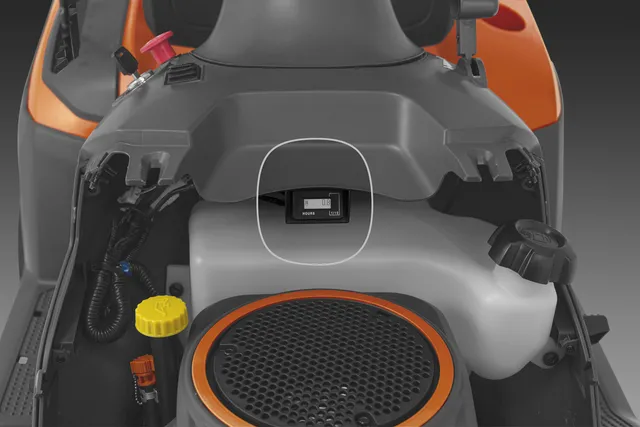

Hour meter
Hour meter for easy control of operating time and service and maintenance intervals.

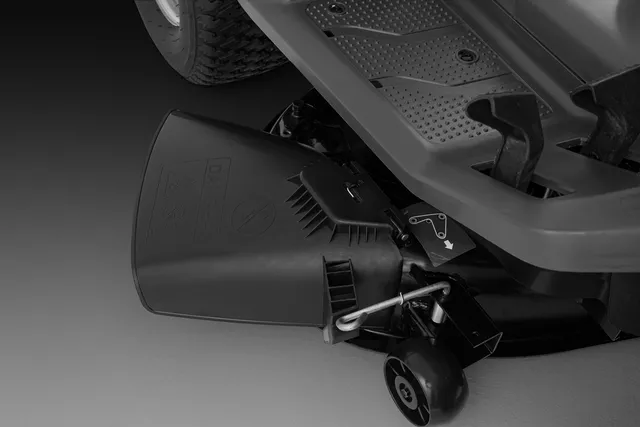

Side discharge cutting deck
Equipped with a 95cm side discharge cutting deck.
Pedal-operated hydrostatic transmission
Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.
Compact design
Compact design for effortless navigation in narrow passages and easy storage while not in use.
Anti scalp wheels
The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns.
Ergonomic controls
Comfortable driving position and operation thanks to the adjustable seat and easy-access controls. Spring-assisted cutting height adjustment for easy setting of the desired height.
ROS in start key
ROS is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally.
Manual blade engagement
Lever to engage the cutting deck.
Fuel level window
Fuel level window makes it easy to check the fuel level.
Dual pedal drive
Dual pedal drive for better drive control and easy, intuitive operation

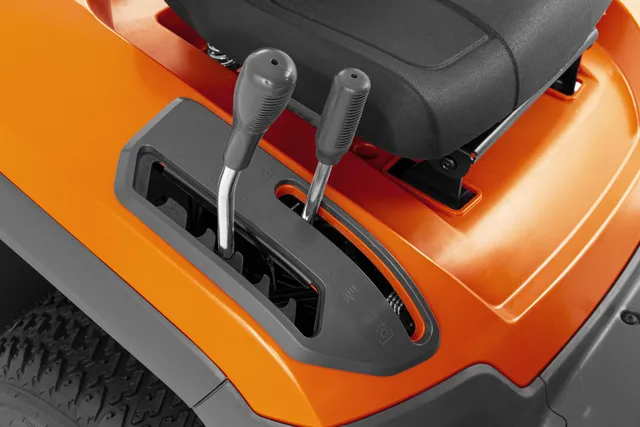

Control levers on one side
Control levers on only one side make it easy to get in and out of the seat on the other side.

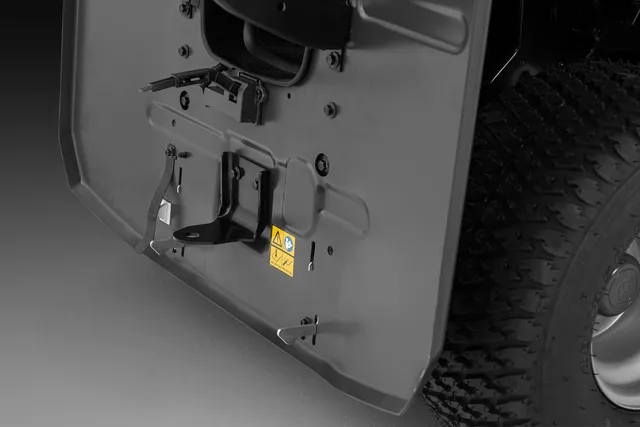

Towing hook included
Additional functionality thanks to the included towing hook which enables the use of many accessories.
Lever-Mounted cutting height adjustment
Easily accessible cutting height adjustment for improved ergonomics.The spring-assisted cutting height adjustment makes setting the desired height even easier.
Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

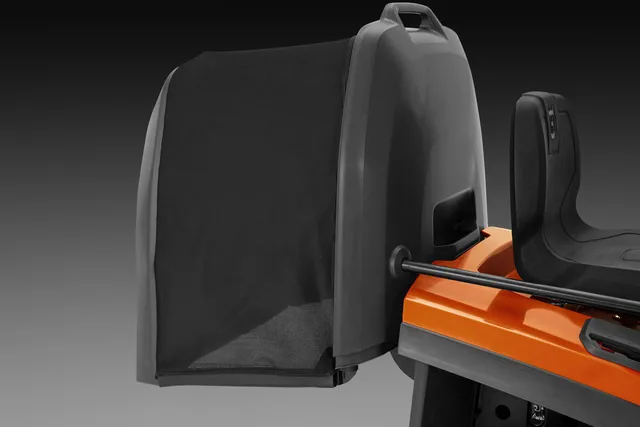

Collection bag
Large bag collects your grass clippings, leaving a clean lawn as a result.
